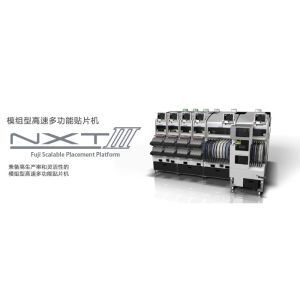

Fuji mounter nxt-m6iii Fuji NXT modular high-speed multifunctional mounter:
NXT - M6IIIc module high-speed Fuji SMT machine multi-function placement machine product features:
1, implement the industry's highest productivity per unit area
NXT IIIc achieved 1 module occupies an area of only 0.46 m2 extremely compact.
All took their cue from the concept of NXT III, raised about 34% of the area of productivity, the area of the industry the highest productivity is realized. (CPH 81300 / m2)
* in August 2015, the company investigation.
2, can not stop the machine added components.
NXT II and NXT IIIc, feeder in production can be loading and unloading, and can not stop the machine components.
For raw material components, can also be added in the production of components.
Prepared and can correspond to the material stitching is rich in a variety of tools.
Object circuit board size (LxW) : 48 mm x 48 mm ~ 534 mm x 290 mm (double handling track specifications) 48 mm x 48 mm ~ 534 mm x 380 mm (single handling track specifications) * double handling track maximum 170 mm (W), into a single crane rail handling more than 170 mm. | Components with count: MAX45 species (8 mm strip conversion) Circuit board loading time: Double handling orbit: O SEC when continuous operation, single handle orbit: 3.4 SEC (M6 IIIc handling) between each module, Module width: 645 mm Machine size: L: 1295 mm x 2 (M3 x 4, III M6 III) / 645 mm (M3 x 2, III M6 III) W: 1900.2 mmH: 1476 mm |
SMT/coating position precision accuracy (benchmark anchor point benchmark) : * SMT precision is in the company under the condition of determination results. H24G: + / - 0.025 mm (standard mode) / + / - 0.038 mm (production priority mode) (3 sigma) CPK ≧ 1.00 V12 / H12HS: + / - 0.038 mm (3 sigma) CPK ≧ 1.00 H08M H04S/H04SF: + / - 0.040 mm (3 sigma) CPK ≧ 1.00 H08 / H04 / OF: + / - 0.050 mm (3 sigma) CPK ≧ 1.00 | Capacity: * capacity values are in the company under the condition of determination results. H24G: 37500 (production priority mode) / 35000 (standard mode) CPH V12:26000 CPH H12HS: 24500 CPH H08M: 13000 CPH H08:11500 CPH H04:6500 CPH H04S: 9500 CPH H04SF: 10500 CPH H02:5500 CPH H02F: 6700 CPH H01-2:4200 CPH G04:7500 CPH G04F: 7500 CPH OF: 3000 CPH GL: 16363 DPH (0.22 SEC/dot) |
As seaborne components: H24G: 0201-5 mm x 5 mm height: 2.0 mm V12 / H12HS: 0402 ~ 7.5 mm x 7.5 mm height: 3.0 mm H08M: 0603-45 mm x 45 mm height: 13.0 mm H08:0402 ~ 12 mm x 12 mm height: 6.5 mm H04:1608 ~ 38 mm x 38 mm height: 9.5 mm H04S/H04SF: 1608 ~ 38 mm x 38 mm height: 6.5 mm H02 / H02F/h01-2/0 f: 1608 ~ 74 mm x 74 mm (32 mm x 180 mm) height: 25.4 mm G04 / G04F: 0402 ~ 15 mm by 15 mm height: 6.5 mm | Intelligent feeder: corresponding 4 8 12 16 24 ･ ･ ･ ･ ･ 32 44 56 72 88 ･ ･ ･ ･ ･ width of 104 mm strip Tubes of feeder: 4 ≦ element ≦ 15 mm wide (≦ 6 tube ≦ 18 mm wide), 32 mm wide ≦ 15 ≦ element (18 ≦ feed tube ≦ 36 mm wide) Tray unit: the corresponding materials plate size 135.9 x 322.6 mm (JEDEC specifications) unit (materials plate - M), 276 x 330 mm (tray unit - LT), 143 x 330 mm (tray unit - LTC) Options: Disc feeder, PCU IIc (feed bracket to replace units), PSU IIc stand bracket placement machine (material), MCU IIc replacement unit (module), MCU IIc (module) implantation, management computer implantation, FUJI CAMX Adapter, Fujitrax |
Shenzhen letter surplus lung electronic technology co., LTD., dedicated to electronic manufacturers to provide SMT equipment as follows:
MPM printer, Koh Young SPI, SMT machine rental lease
Siemens placement machine, FUJI FUJI SMT machine, panasonic SMT machine
The AOI, lu Vitronics Soltec reflow soldering, non-standard automation equipment
The SMT production line equipment, and SMT components, SMT supplementary materials, services and solutions.
|
|
